Soldeer Robot HS-S331 Series

Vorige Artikel 6 van 7 Volgende

Introduction



This automatic soldering machine is 3 axis operation, single soldering head without rotation, it's mostly used in the electronics manufacturing industry to achieve blind soldering which in reflow soldering and wave soldering can not do, It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process, also widely used in PCB soldering wire, charger plug,solering,connector plug,DC terminal,LED strip light soldering and other fields.



Features



1, Applicable for different products, soldering temperature can be set freely.
(Different temperature can be set for each solder joint.)

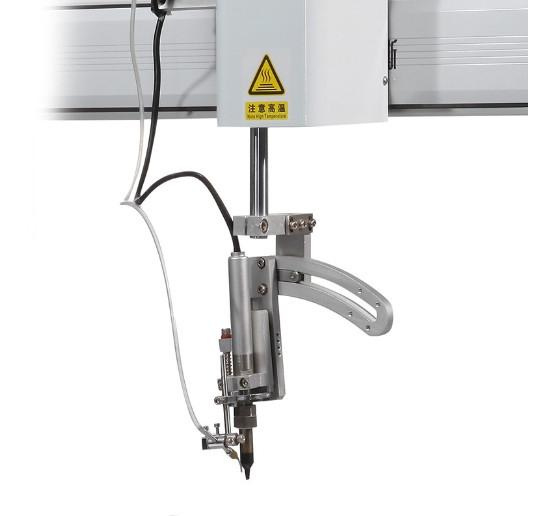

2,The soldering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
3, Numerically controlled temperature. ( static air condition +-1℃)
4. With the handheld LCD teaching pendant, the programming is simple and easy to learn.
5, In the soldering process, the solder tip has rapid heat recovery and a long life span.



Specification



ModelHS-S331
VoltageAC110V/220V,50/60Hz
X/Y/Z working range300*300*100mm
X/Y/Z moving speedmax 300mm/s
Driven systemStepper motor,timing belt
Repeat accuracy±0.02mm
ProgramingTeach pendant
Control systemPLC
Document supportCAD
Weight48kg
Machine dimension

500*560*820mm



Specification



ModelHS-S331R
VoltageAC110V/220V,50/60Hz
X/Y/Z working range300*300*100mm
R axis360 degree
X/Y/Z moving speedmax 300mm/s
Driven systemStepper motor,timing belt
Linear guideTaiwan brand high precison guide
Repeat accuracy±0.02mm
ProgramingTeach pendant
Control systemControl board
Program storage

It can store one thousand sets of processing data and a single

processing file can occupy up to 3M storage space

(five thousand processing points)

File storage space

 Handheld box 256M, offline card 32M, single processing file up to

3M storage space (100,000 processing points)

Document supportCAD,CorelDRAW
Iron Tin cleaningAir cleaning/pneumatic
External interfaceUSB+RS232
Soldering methodPoint/drag soldering
Weight48kg
Machine dimension

520*585*800mm
